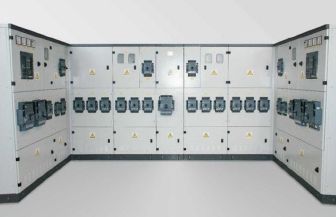

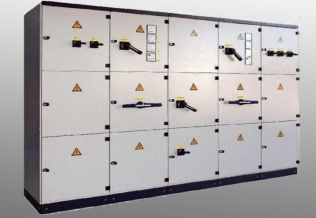

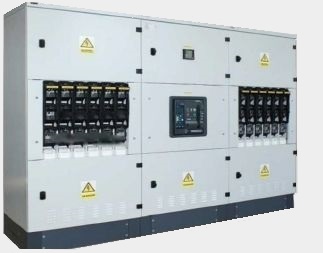

RNTc
 |
 |
- System of the switchgear of RNTc type is based on a modular design.
- All elements and functional assemblies of the switchgear are standardized and universal, allowing the implementation of the projects of any complexity in short terms.
- System provides a wide range of applications both as the switchgears and as the control devices.
- The case of the cells is made as a frame made of steel profiles which are the load-bearing structure for all the elements of the switchgear.
- Structure of the cell is very stable and allows mounting of a variety of electrical equipment.
- Maintenance of the switchgear is possible from one or two sides.
- Access to the cell is possible through the hatches placed on the top and bottom of the switchgear or through the door, individual for each functional compartment of the switchgear.
- System of RNTc type switchgears allows the mounting of:
- the bus bars with current up to 6300A
- outgoing bars with current up to 3200A
- air circuit breakers up to 6300A
- compact breakers up to 1600A
- safety devices up to 630
- adjusting equipment.
- Mounting system of RNTc type switchgears provides a high level of security due to the mechanical locks system and an isolated system of bus bars.

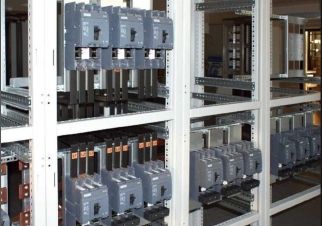

- System allows the production of switchgears using the mixed techniques of mounting the components: stationary, withdrawable and plug-in.
 |
 |
 |
Advantages
- Maximum operational safety and reliability
- Universal mounting system, the individual configuration settings
- Simple and effective mounting, rapid modernization

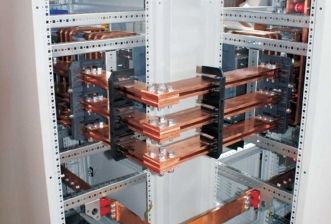

- Variable arrangement of the bus bars
- Possibility of combination of different mounting systems in one cell
- Connection of the cables and bus bars from the top, bottom, side or back
- Efficient ventilation system of the cell
- Possibility of the internal division taking into account different requirements
- Possibility of compact design of the switchgear for a limited mounting space
- Careful control and monitoring of manufacture
- Full testing and commissioning of the switchgear
System Overview
- Input cells:
- equipped with the circuit breakers for currents up to 6300A
- width of the cell is 400, 500, 600 or 800 mm
- cable/bus bars are on the top, bottom or side
- separated functional compartment
- Sectional cells:
- equipped with the circuit breakers for currents up to 6300A
- equipped with the breakers for currents up to 2500A
- width of the cell is 800 or 600 mm
- separated functional compartments
- Outgoing cells with power circuit breaker:
- equipped with circuit breakers for currents up to 1600A
- cells for one or two compartments
- width of the cell is 600, 800 or 1000 mm
- cable connections from the top or bottom
- separated functional compartments
- Outgoing cells with a fuse:
- equipped with a fuse for currents up to 63OA
- vertical or horizontal positioning
- cells of one or two compartments
- width of the cell is 600, 800 or 1000 mm
- cable connections from the top or bottom
- separated functional compartments
- Cells with the capacitor banks:
- equipped with the capacitor banks with a total power up to 600 kVAr
- capacitor banks with or without throttles
- contactor or thyristor connection
- width of the cell is 600, 800 or 1000 mm
- Cell of the general purpose:
- cell for the installation of the modular equipment on the TS bars
- height of the mounting panel is 150 mm
- cells for control systems installation
- universal mounting plates
- width of the cell is 400, 500, 600 or 800 mm
- Cells on request:
- possibility of the individual cells manufacture
- possibility of blending all the mounting systems
- width of the cell is 400, 500, 600, 800 or 1000 mm
